ATLAS Platinum PVL-10 ALI Certified 10,000 Lbs. Symmetric/Asymmetric Adjustable Height 2 Post Overhead Car Lift
The Atlas PVL-10 was engineered and built to offer a commercial grade above ground lift to those customers who have "fallen in love" with the Double S column design and asymmetric columns. Tens of thousands of above ground lifts incorporating the Double S column design have been sold worldwide over the past two decades. The Double S column design was so revolutionary, that it was protected by a patent. That patent has now expired.
The Atlas PVL-10 can be installed with the columns positioned either symmetrically or asymmetrically. When the Apex columns are installed in the asymmetrical configuration, there may be some benefit to open car doors. When the Apex columns are installed in the symmetric configuration there is more width between the columns. Please check the specifications page and picture gallery to determine which height setting and column configuration (asymmetrical or symmetrical) would be the best for your application. Both column configurations offer easy vehicle access and superior vehicle lift point support due to the three stage front arm design.
The Atlas PVL-10 features three (3) stage telescoping front arms, double screw rubber/metal adapters with truck height extensions, protective rubber pads mounted to the carriage , rubber column guards, and a price that cannot be matched.
Symmetric Columns And Super Symmetric Arms
The three stage front arms can be configured in the super-symmetric position when the columns are installed in the symmetric configuration. The Atlas PVL-10 super-symmetric arm configuration allows the customer to position the front arms as they are positioned for the Atlas 9OHSC-SS.

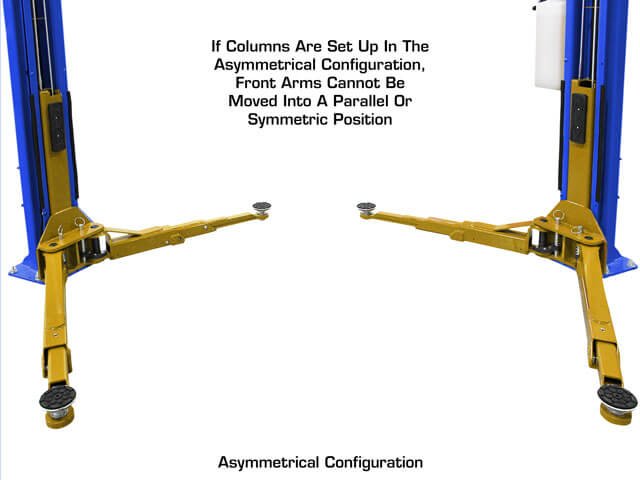

Asymmetric Columns and Arms
When the columns are installed in the asymmetric position, the arms will automatically configure into the asymmetric position allowing the 3-stage front arms to “point” toward the rear of the car. (PV-10P asymmetric arm configuration). If the columns are installed in this asymmetric position, then the front arms cannot be moved into a parallel or symmetric configuration.
Double Screw Up Adapters
Adjustable double screw lift pads are included with the Atlas Apex-10 Plus. Screw up adapters allow the operator to “precisely position” the lift pad in direct contact with the vehicle’s lifting points.
The Atlas PVL-10 was engineered and built to offer a commercial grade above ground lift to those customers who have "fallen in love" with the Double S column design and asymmetric columns. Tens of thousands of above ground lifts incorporating the Double S column design have been sold worldwide over the past two decades. The Double S column design was so revolutionary, that it was protected by a patent. That patent has now expired.
The Atlas PVL-10 can be installed with the columns positioned either symmetrically or asymmetrically. When the Apex columns are installed in the asymmetrical configuration, there may be some benefit to open car doors. When the Apex columns are installed in the symmetric configuration there is more width between the columns. Please check the specifications page and picture gallery to determine which height setting and column configuration (asymmetrical or symmetrical) would be the best for your application. Both column configurations offer easy vehicle access and superior vehicle lift point support due to the three stage front arm design.
The Atlas PVL-10 features three (3) stage telescoping front arms, double screw rubber/metal adapters with truck height extensions, protective rubber pads mounted to the carriage , rubber column guards, and a price that cannot be matched.
Symmetric Columns And Super Symmetric Arms
The three stage front arms can be configured in the super-symmetric position when the columns are installed in the symmetric configuration. The Atlas PVL-10 super-symmetric arm configuration allows the customer to position the front arms as they are positioned for the Atlas 9OHSC-SS.
Asymmetric Columns and Arms
When the columns are installed in the asymmetric position, the arms will automatically configure into the asymmetric position allowing the 3-stage front arms to “point” toward the rear of the car. (PV-10P asymmetric arm configuration). If the columns are installed in this asymmetric position, then the front arms cannot be moved into a parallel or symmetric configuration.
Double Screw Up Adapters
Adjustable double screw lift pads are included with the Atlas Apex-10 Plus. Screw up adapters allow the operator to “precisely position” the lift pad in direct contact with the vehicle’s lifting points.
The Atlas PVL-10 was engineered and built to offer a commercial grade above ground lift to those customers who have "fallen in love" with the Double S column design and asymmetric columns. Tens of thousands of above ground lifts incorporating the Double S column design have been sold worldwide over the past two decades. The Double S column design was so revolutionary, that it was protected by a patent. That patent has now expired.
The Atlas PVL-10 can be installed with the columns positioned either symmetrically or asymmetrically. When the Apex columns are installed in the asymmetrical configuration, there may be some benefit to open car doors. When the Apex columns are installed in the symmetric configuration there is more width between the columns. Please check the specifications page and picture gallery to determine which height setting and column configuration (asymmetrical or symmetrical) would be the best for your application. Both column configurations offer easy vehicle access and superior vehicle lift point support due to the three stage front arm design.
The Atlas PVL-10 features three (3) stage telescoping front arms, double screw rubber/metal adapters with truck height extensions, protective rubber pads mounted to the carriage , rubber column guards, and a price that cannot be matched.
Symmetric Columns And Super Symmetric Arms
The three stage front arms can be configured in the super-symmetric position when the columns are installed in the symmetric configuration. The Atlas PVL-10 super-symmetric arm configuration allows the customer to position the front arms as they are positioned for the Atlas 9OHSC-SS.
Asymmetric Columns and Arms
When the columns are installed in the asymmetric position, the arms will automatically configure into the asymmetric position allowing the 3-stage front arms to “point” toward the rear of the car. (PV-10P asymmetric arm configuration). If the columns are installed in this asymmetric position, then the front arms cannot be moved into a parallel or symmetric configuration.
Double Screw Up Adapters
Adjustable double screw lift pads are included with the Atlas Apex-10 Plus. Screw up adapters allow the operator to “precisely position” the lift pad in direct contact with the vehicle’s lifting points.
Features
ALI Certified Lift
10,0000 lb. Capacity
Column design with special Double “S” bends increasing column strength
Can be installed Symmetrically OR Asymmetrically
Overall Height: 135 7/8″ (11′ 3 7/8″) or 139 7/8″ (11′ 7 7/8″) (Cylinder Height 12′ 4″)
Padded Carriages
3-Stage Front Arms & 2-Stage Rear Arms
Single-Point Lock Release
Powder Coat Finish
Includes Double Screw-up Adapters
Free 8 Piece Truck Adapter Set
Mounting Hardware Included
Standard with Premium ALLY Powerunit
Shipping Weight: 1,850 lbs.
5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty
